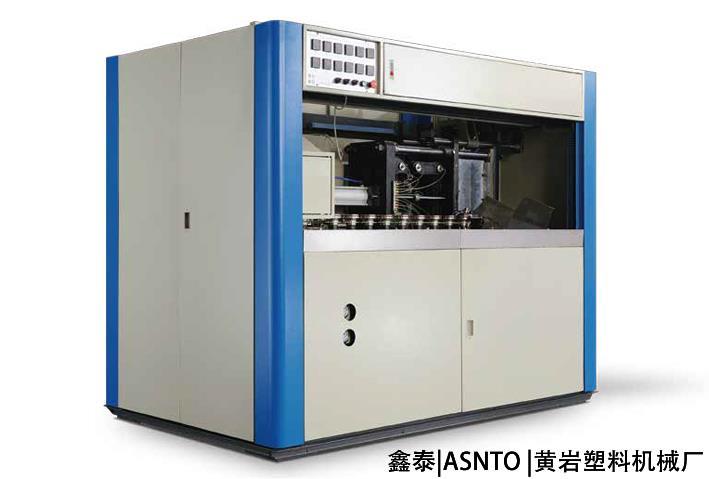

| Model No.型號? XT2500M |
|
| number of cavity 模穴數 | 1 |
| clamping stroke 開模行程 | 160 mm |
| production 理論產量 | 900pcs/hr |
| total power 總裝機容量 | 31 kw |
| actual power consumption 實際耗電量 | ≤11 kw |
| pressure for working 動作用氣壓力 | 10 kg |
| pressure for blowing 允許吹氣壓力 | 30 kg |
| flow rate for working 動作用氣量 | 1.0 m3 |
| flow rate for blowing 吹氣用氣量 | 1.2 m3 |
| neck diameter 允許瓶口直徑 | 24-120 mm |
| max diameter 允許瓶身直徑 | 150 mm |
| max height 允許瓶身高度 | 320 mm |
| machine size LxWxH 機器尺寸 | 2.1x1.75x2.1 m |
| machine weight 機器重量 | 1450 kg |
| Model No.型號? XT5500M |
|
| number of cavity 模穴數 | 1 |
| clamping stroke 開模行程 | 200 mm |
| production 理論產量 | 650pcs/hr |
| total power 總裝機容量 | 38 kw |
| actual power consumption 實際耗電量 | ≤15 kw |
| pressure for working 動作用氣壓力 | 10 kg |
| pressure for blowing 允許吹氣壓力 | 30 kg |
| flow rate for working 動作用氣量 | 1.8 m3 |
| flow rate for blowing 吹氣用氣量 | 2.2 m3 |
| neck diameter 允許瓶口直徑 | 24-120 mm |
| max diameter 允許瓶身直徑 | 180 mm |
| max height 允許瓶身高度 | 320 mm |
| machine size LxWxH 機器尺寸 | 2.58x1.65x2 m |
| machine weight 機器重量 | 1850 kg |
| Model No.型號? XT20L |
|
| number of cavity 模穴數 | 1 |
| clamping stroke 開模行程 | 320 mm |
| production 理論產量 | 300pcs/hr |
| total power 總裝機容量 | 50 kw |
| actual power consumption 實際耗電量 | ≤20 kw |
| pressure for working 動作用氣壓力 | 10 kg |
| pressure for blowing 允許吹氣壓力 | 30 kg |
| flow rate for working 動作用氣量 | 2.5 m3 |
| flow rate for blowing 吹氣用氣量 | 3.5 m3 |
| neck diameter 允許瓶口直徑 | 38-80 mm |
| max diameter 允許瓶身直徑 | 300 mm |
| max height 允許瓶身高度 | 500 mm |
| machine weight 機器重量 | 3500 kg |
