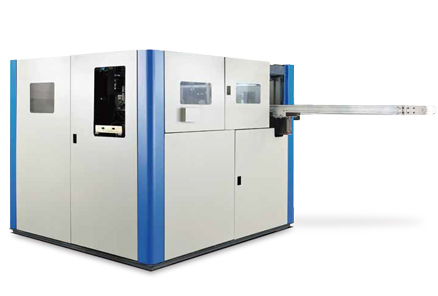

鑫泰|ASNTO|AUXT2500吹瓶機系列
| Model No.型號? AUXT2500 | 1 | 2 | 3 | 4 |
| number of cavity 模穴數 | 1 | 2 | 3 | 4 |
| clamping stroke 開模行程 | 160 mm | 160 mm | 160 mm | 160 mm |
| production 理論產量 | 800pcs/hr | 1500pcs/hr | 2100pcs/hr | 2600pcs/hr |
| total power 總裝機容量 | 31 kw | 25kw | 40 kw | 55 kw |
| actual power consumption 實際耗電量 | ≤10 kw | ≤14 kw | ≤18 kw | ≤23 kw |
| pressure for working 動作用氣壓力 | 10 kg | 10 kg | 10 kg | 10 kg |
| pressure for blowing 允許吹氣壓力 | 30 kg | 30 kg | 30 kg | 30 kg |
| flow rate for working 動作用氣量 | 1.0 m3 | 2.5 m3 | 1.5 m3 | 1.5 m3 |
| flow rate for blowing 吹氣用氣量 | 1.2 m3 | 3.5 m3 | 3.5 m3 | 3.5 m3 |
| neck diameter 允許瓶口直徑 | 24-40 mm | 40-120 mm | 40-100 mm | 40-80 mm |
| max diameter 允許瓶身直徑 | 150 mm | 140 mm | 140 mm | 115 mm |
| max height 允許瓶身高度 | 320 mm | 320 mm | 320 mm | 320 mm |
| machine size LxWxH 機器尺寸 | 2.2x1.75x2.1 m | 2.6x2.2x2.2 m | 3.5x2.2x2.2 m | 3.5x2.2x2.2 m |
| auto loader LxWxH 上料機構 | 1.7x1.7x2.7 | 1.7x2.7x2.7 | 1.7x2.7x2.7 | 1.7x2.7x2.7 |
| machine weight 機器重量 | 1450 kg | 1800 kg | 2500 kg | 3000 kg |
